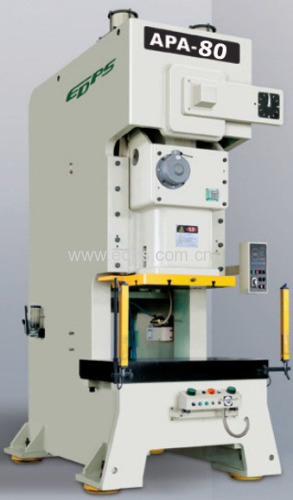

APA C frame single crank press

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: APA 80V
Production Capacity: 100sets/month
Delivery Date: 40-60days
Stroke:: 65 Mm
Stroke Per Minute:: 65 S. P. M
RAM Area:: 560x420x70 mm
Main Motor:: VS7.5x4
Press Weight:: 6.5 tons
Means of Transport: Ocean,Land
Packing: wooden case/timber floor
Capacity:: 80 Metric Tons
Die Height:: 340 Mm
RAM Adjustment:: 80 Mm
Bolster Area:: 1000x550x90 mm
Press Precision:: 1800x1180x2980 mm

Capacity: 80 Metric Tons
Stroke: 60 Mm
Die Height: 340 Mm
RAM Adjustment: 80 Mm

80T APA C frame single crank press with low cost

Functions & Feature:


1. With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine
2. Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
3. In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical boards with balancer.
4. The prebenefit for automation production and reduce sicion of mold adjusting up to 0.1mm, safety, reliable and convenient.
5. Crank, gear,connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable fuction.
5. Used reliable high sensitive clutch/brake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision of slider running and stop and safe production of the machine.
6. Reasonalbe structural design, is cost, improve efficiency.
7. Advanced design principle, low price, low consumption, low cost and save energy.

Machine Dimensions:
80T APA C frame single crank presswith low cost

80T APA C frame single crank presswith low cost


Standard Accessories:
80T APA C frame single crank press with low cost

Standard Configuration:                                       Optional Accessories
>Inverter                                                                    >High performance wet clutch & brake
>Hydraulic                                                                >Electical automatic lubrication system
>Slide sdjust (80 tons and below)                      >Pneumatic die cushion device
>Slide adjust device (80 tons and above)         >Foot switch
>Die height indicator (60 tons and below)        >Quick die change device
>Die height indicator (60 tons and above)          (die lifter,calmp and die arm sepjes)
>Balance device                                                     >Slide knock-out device
>Rotary cam switch                                               >Auti-vibration press mount
>Misfeed detection consent                                 >Photo-electronic safety device
>Power supply                                                        >Feeder
>Crank angle indicator                                          >Uncoiler
>Electrical stroke counter                                     >Leveler
>Air source receptacle                                          >Mechanism hand
>Against over-run safety device                          >Die room light
>Air ejector                                                              >Touch pad (prest, total counter)
>Mainttenance tool box                                         >PAC 100 counter system
>Operation manual                                               >Human-computer counter system

80T APA C frame single crank press with low cost


Slide

80T APA C frame single crank press with low cost

Bolster
80T APA C frame single crank press with low cost
